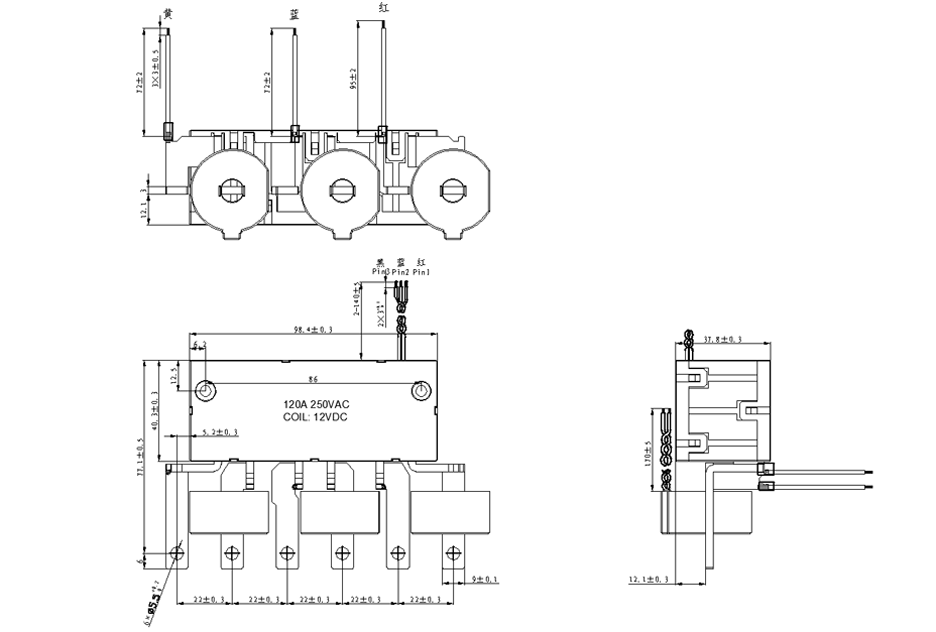

外形尺寸Dimensions（mm）

98.4×40.3×37.8

觸點形式 Contact Form

3A/3B

觸點材料 Contact Material

銀合金 (Silver Alloy)

最大切換電流 Max Switching Current（阻性 Anti-load）

120A

最大切換電壓Max Switching Voltage

250VAC

最大切換功率Max Switching Power

30000VA

重量（不帶附件）Wight

330g

線圈額定電壓 Rated Coil Voltage

9VDC

12VDC

24VDC

48VDC

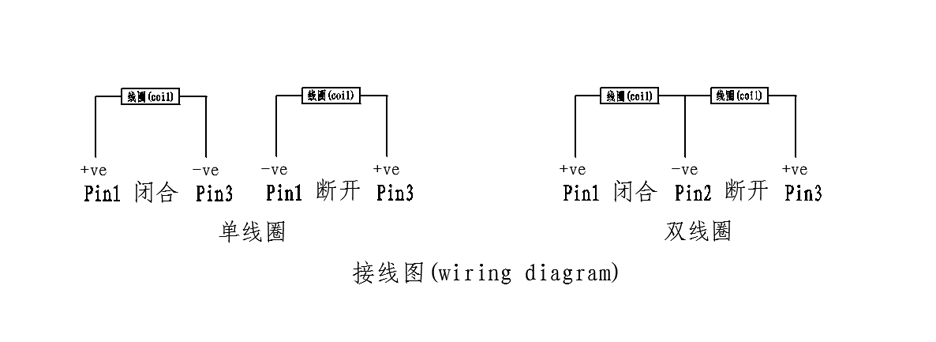

線圈電阻

Coil Resistance

單線圈Single Coil（±10%Ω）

27

48

192

768

雙線圈Double Coil±10%Ω）

13.5

24

96

384

閉合電壓 Pick-up Voltage

≤75%額定值（Rated Coil Voltage ）

斷開電壓 Drop-out Voltage

≤75%額定值（Rated Coil Voltage ）

過載電壓 Max. Applicable Voltage

 ≤120%額定值（Rated Coil Voltage）

閉合時間Pick-up Time (At Rated Voltage)

≤50ms

斷開時間Drop-out Time (At Rated Voltage)

≤50ms

回跳時間 Bounce Time

≤2ms

環境濕度 Ambient Humidity

年平均≤75%（Annually average)

抗振動 Anti-vibration

10~55Hz,0.5mm (Double Amplitude)

抗沖擊 Anti-shock

98m/s²,11ms

相對濕度R.H.

5%~85%

接觸電阻 Contact Resistance

≤2.0mΩ (1A/6VDC測試)

產品認證

UC3/RoHS/TUV

介質耐壓   Dielectric Strength

觸點間 Between Contacts

2000VAC 50/60Hz (1 Minute)

觸點組間耐壓 Between Contacts&Contact

4000 VAC 50/60Hz (1 Minute)

壽命Life

電氣壽命Electrical Life

≥1ⅹ10⁴OPS

機械壽命 Mechanical Life

≥1ⅹ10⁵OPS
